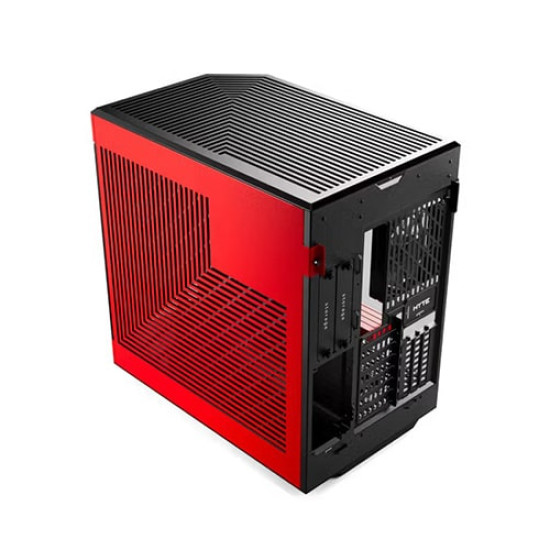

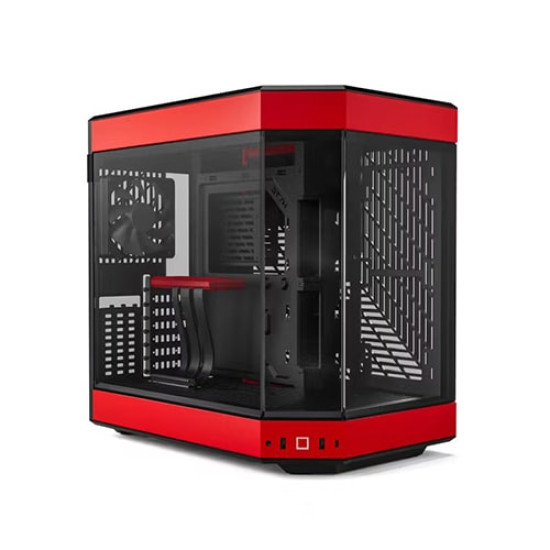

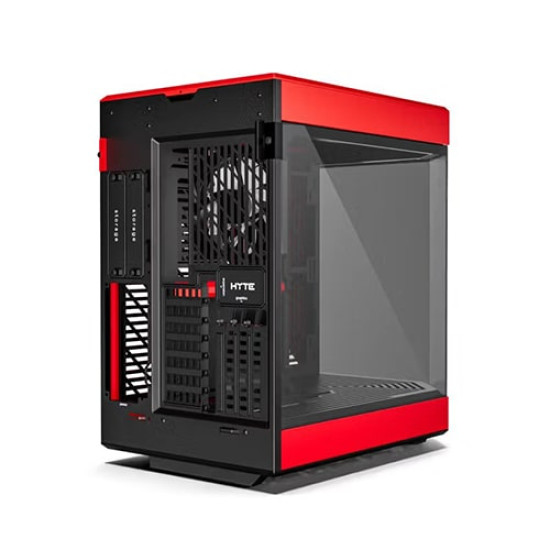

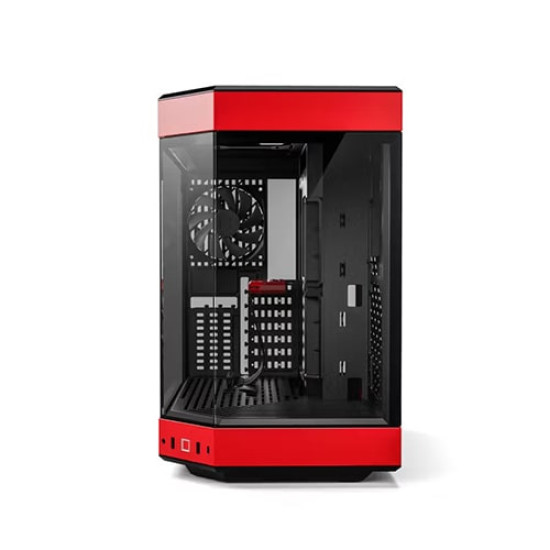

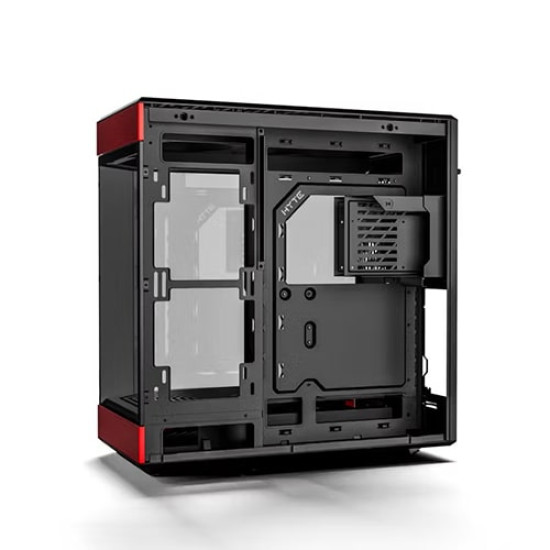

HYTE Y60 Modern Aesthetic Case Black-Red Mid Tower Case (CS-HYTE-Y60-BR)

Key Features

Panoramic Views

No corner pillar. The Y60 features a 3-piece panoramic tempered glass design for the ultimate photo and display potential. See your build the way it was meant to be seen from the left or right side of your desk with a simple turn.

Exclusively Vertical GPU Mounted

Why would you want to see your graphics card any other way?

Included PCIE 4.0 Riser Cable

A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card. The protective shroud is the first of its kind, made specifically for the Y60.

Antechamber Construction

Segment cables from thermal components and turn your PC into a work of art.

Cold Floor Cooling

Eliminate hot spots with sweeping lateral vents from fans tastefully tucked into the basement of the Y60.

Included Fans

The three pre-installed Flow FE12 fans with fluid-dynamic bearings provide whisper-quiet operation.

Specification

Type : Dual Chamber Mid-Tower ATX Case

Volume : 60L

Case Dimensions : 456mm (L) x 285mm (W) x 462mm (H)

Case in Box Dimensions : 535mm (L) x 372mm (W )x 540mm (H)

Case Materials : Tempered Glass, Steel, ABS

Color : Red/Black

Motherboard Support : EATX, ATX, mATX, ITX

Power Supply : ATX up to 235mm in length

Video Card Max Dimensions : 375mm length, 75mm width (60mm or less recommended for best cooling)

Fan Support (Side) : 2x 120/140mm

Fan Support (Top) : 3x 120mm

Fan Support (Rear) : 1x 120mm (1x 120mm, 1300 RPM included)

Fan Support (Bottom : 2x 120mm/140mm (2x 120mm, 1300 RPM included)

Radiator Support (Side) : 120, 140, 240, 280mm up to 150mm thick

Radiator Support (Top) : 120, 240, 360mm up to 30mm thick

Radiator Support (Rear) : 120mm

CPU Cooler Height : 160mm*

Storage : 2x 3.5" HDD or 4x 2.5" SSD

Expansion Slots : 3 + 7 half-height

PCI Express Riser : 4.0 x 16 (included)

Sku : CS-HYTE-Y60-BR

Interfaces

Front USB 3.0 : 2

Front USB 3.2 Gen 2 Type-C : 1

Audio/Mic Jack : 1

Dust Filters : Bottom, Side, Top

RGB Lighting : None
